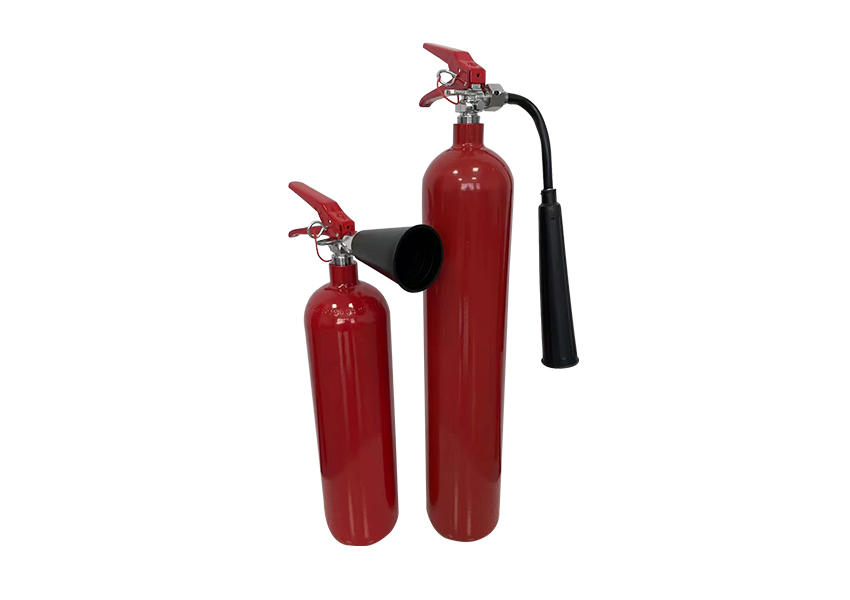

2L-15L small Seamless steel gas cylinder
Specification:
34CrMo4 150bar/250bar:
| NO. | Type | Out-diameter | Height | Minimum wall thickness | Mass | Material | Temperature | Work pressure | Test pressure | Bottleneck cap |
| 1 | 2L | 103mm | 345mm | 2.0mm | 3.1kg | 34CrMo4 | -40℃～+60℃ | 150Bar | 250Bar | NO |
| 2 | 3L | 103mm | 470mm | 2.0mm | 3.8kg | NO | ||||
| 3 | 5L | 136mm | 460mm | 2.6mm | 6.1kg | YES | ||||
| 4 | 6.7L | 136mm | 590mm | 2.6mm | 7.2kg | YES | ||||
| 5 | 8L | 136mm | 685mm | 2.6mm | 8.4kg | YES | ||||
| 6 | 10L | 136mm | 840mm | 2.6mm | 10.4kg | YES |
34CrMo4 200bar/315bar:
| NO. | Type | Out-diameter | Height | Minimum wall thickness | Mass | Material | Temperature | Work pressure | Test pressure | Bottleneck cap |
| 1 | 2L | 104mm | 345mm | 2.5mm | 3.1kg | 34CrMo4 | -40℃～+60℃ | 200Bar | 315Bar | NO |
| 2 | 3L | 104mm | 470mm | 2.5mm | 3.8kg | NO | ||||
| 3 | 5L | 137mm | 460mm | 3.3mm | 6.7kg | YES | ||||
| 4 | 6.7L | 137mm | 590mm | 3.3mm | 8.0kg | YES | ||||
| 5 | 8L | 137mm | 685mm | 3.3mm | 9.2kg | YES | ||||
| 6 | 10L | 137mm | 840mm | 3.3mm | 11kg | YES | ||||
| 7 | 8L | 155mm | 555mm | 3.62mm | 10.3kg | YES | ||||
| 8 | 10L | 155mm | 670mm | 3.62mm | 12kg | YES | ||||
| 9 | 4L | 140mm | 380mm | 3.27mm | 6.9kg | YES | ||||
| 10 | 5L | 140mm | 455mm | 3.27mm | 8.0kg | YES | ||||
| 11 | 6.7L | 140mm | 585mm | 3.27mm | 9.8kg | YES | ||||
| 12 | 8L | 140mm | 680mm | 3.27mm | 11.3kg | YES | ||||
| 13 | 10L | 140mm | 830mm | 3.27mm | 13.4kg | YES | ||||
| 14 | 13.4L | 155mm | 870mm | 3.62mm | 14.7kg | YES |
37Mn 150bar/250bar:
| NO. | Type | Out-diameter | Height | Minimum wall thickness | Mass | Material | Temperature | Work pressure | Test pressure | Bottleneck cap |
| 1 | 2L | 108mm | 325mm | 2.95mm | 3.8kg | 37Mn | -40℃～+60℃ | 150Bar | 250Bar | NO |
| 2 | 2.7L | 108mm | 415mm | 2.95mm | 4.8kg | NO | ||||
| 3 | 3L | 108mm | 450mm | 2.92mm | 5.1kg | NO | ||||
| 4 | 4L | 140mm | 380mm | 3.82mm | 6.9kg | YES | ||||
| 5 | 5L | 140mm | 455mm | 3.82mm | 8.0kg | YES | ||||
| 6 | 6.7L | 140mm | 585mm | 3.82mm | 9.8kg | YES | ||||
| 7 | 8L | 140mm | 680mm | 3.82mm | 11.3kg | YES | ||||
| 8 | 10L | 140mm | 830mm | 3.82mm | 13.4kg | YES | ||||
| 9 | 10L | 159mm | 675mm | 4.34mm | 14kg | YES | ||||
| 10 | 15L | 159mm | 950mm | 4.34mm | 19kg | YES |
