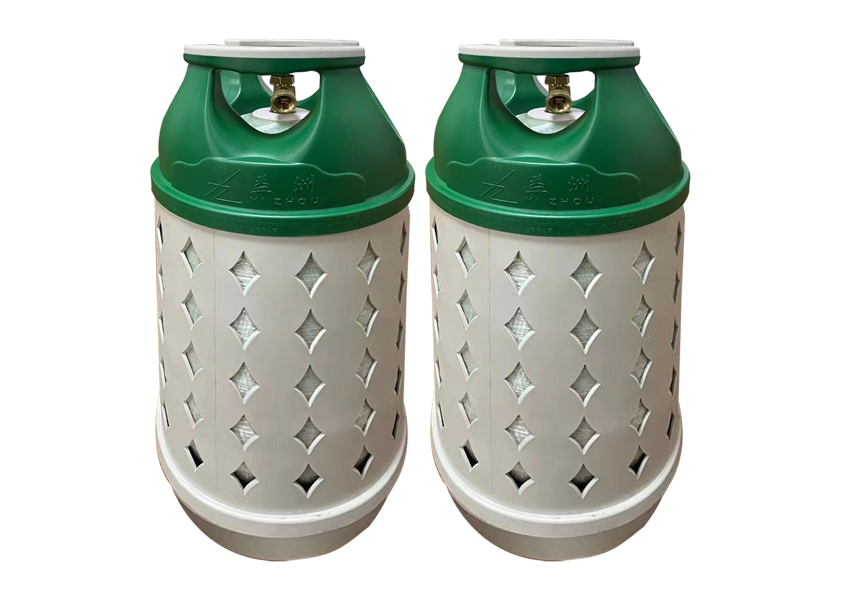

LPG composite cylinder
Specification:
| Cylinder Type According to | Filling Medium | Material | Working Pressure （Bar） | Test Pressure （Bar） | Outside Diameter （mm） | Design Burst Pressure（Bar） | Filling Weight （Kg） | Volume (L) | Total Height （mm） | Nominal Weight （Kg） |
| LPG-35.5 (ISO11119-3) | LPG | HDPE+ Glass fiber | 20 | 30 | 315 | 72 | 15.0 | 35.5 | 803 | 8.10 |
| LPG-34.5 (ISO11119-3) | 14.5 | 34.5 | 788 | 7.80 | ||||||
| LPG-30.5 (ISO11119-3) | 12.8 | 30.5 | 725 | 7.10 | ||||||
| LPG-28.6 (ISO11119-3) | 12.0 | 28.6 | 694 | 6.70 | ||||||
| LPG-27.5 (ISO11119-3) | 11.5 | 27.5 | 678 | 6.50 | ||||||
| LPG-26.2 (ISO11119-3) | 11.0 | 26.2 | 656 | 6.20 | ||||||
| LPG-24.5 (ISO11119-3) | 10.0 | 24.5 | 630 | 5.80 | ||||||
| LPG-18 (ISO11119-3) | 7.5 | 18 | 527 | 4.60 |
