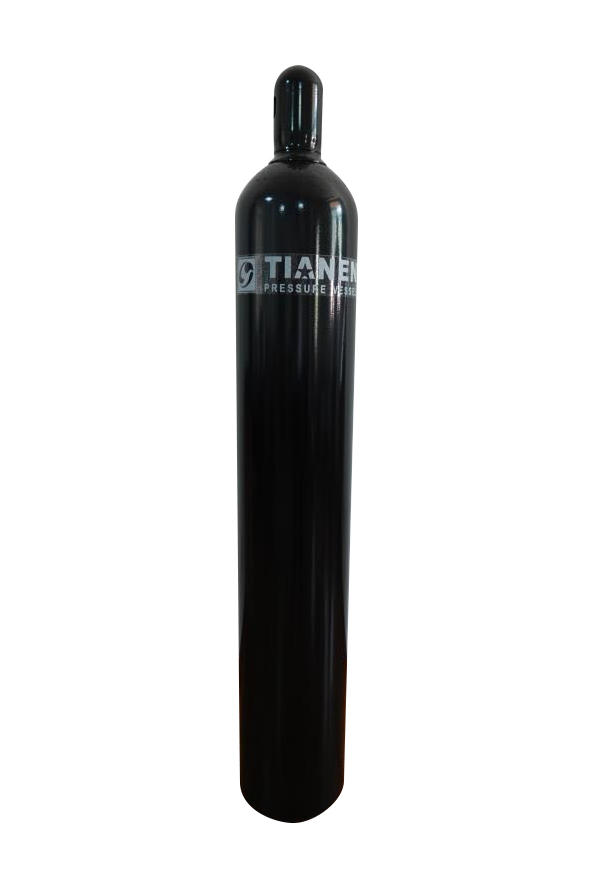

Seamless Steel Gas Cylinder

Cylinder Type According to standard	Working Pressure	Test Pressure	OD of Liner mm	Wall Thickness	Material	Volume	Nominal Height(mm)	Nominal Weight(kg)
WMA219-V-15 (ISO9809-3)	15	25	219	5.7	37Mn	20	710	28.0
						28	950	36.8
						34	1130	41.5
						38	1260	46.0
						40	1310	47.8
						50	1615	58.0
WGA232-V-20 (ISO9809-1)	20	30	232	5.5	34CrMo4	30	910	36.0
						35	1040	40.0
						40	1170	44.6
						45	1305	49.0
						47	1355	50.0
						50	1435	52.5
						60	1700	61.6
						70	1965	71.0
WZA232-V-15 (ISO9809-1)	15	25	232	5.5	37Mn	30	910	36.0
						35	1040	40.0
						40	1170	44.6
						45	1305	49.0
						47	1355	50.0
						50	1435	52.5
						60	1700	61.6
						70	1965	71.0
WGA232-V-23 (ISO9809-1)	23	34.5	232	6.0	34CrMo4	30	920	38.5
						40	1185	48.0
						47	1370	55.2
						50	1450	57.5
						52	1505	59.5
